Incorporated in 1979, Amardeep Auto Enterprises is a dedicated company involved in the manufacture of quality self starter drives assembly, pinions and cold formed/ forged components having close dimensional tolerances, high surface finish and special profiles.

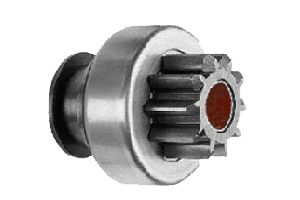

| Equivalent O.E. Part No: 54247034, 54247036, 54268141, 54294922, 60600024, TMB120, TMB108, TMB165. | |||
|---|---|---|---|
| No of Teeth | Gear Outer Dia | Length | No of Splines |
| 10 | 40 | 73 | 12 |
| Bush Internal Dia | Drive Outer Dia | Rotation | |
| 17 | 60 | CW | |

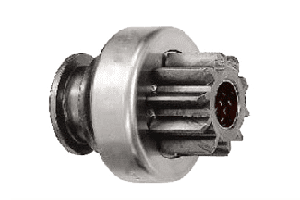

| Equivalent O.E. Part No: 54291911. | |||
|---|---|---|---|
| No of Teeth | Gear Outer Dia | Length | No of Splines |
| 10 | 26.82 | 48 | 9 |
| Bush Internal Dia | Drive Outer Dia | Rotation | |
| 12.1 | 46.5 | CW | |

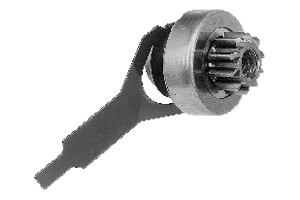

| Equivalent O.E. Part No: 2003162005. | |||
|---|---|---|---|
| No of Teeth | Gear Outer Dia | Length | No of Splines |
| - | - | - | - |
| Bush Internal Dia | Drive Outer Dia | Rotation | |
| - | - | CW | |
All OEM's part no. , names & Logo's are for reference purpose only.
